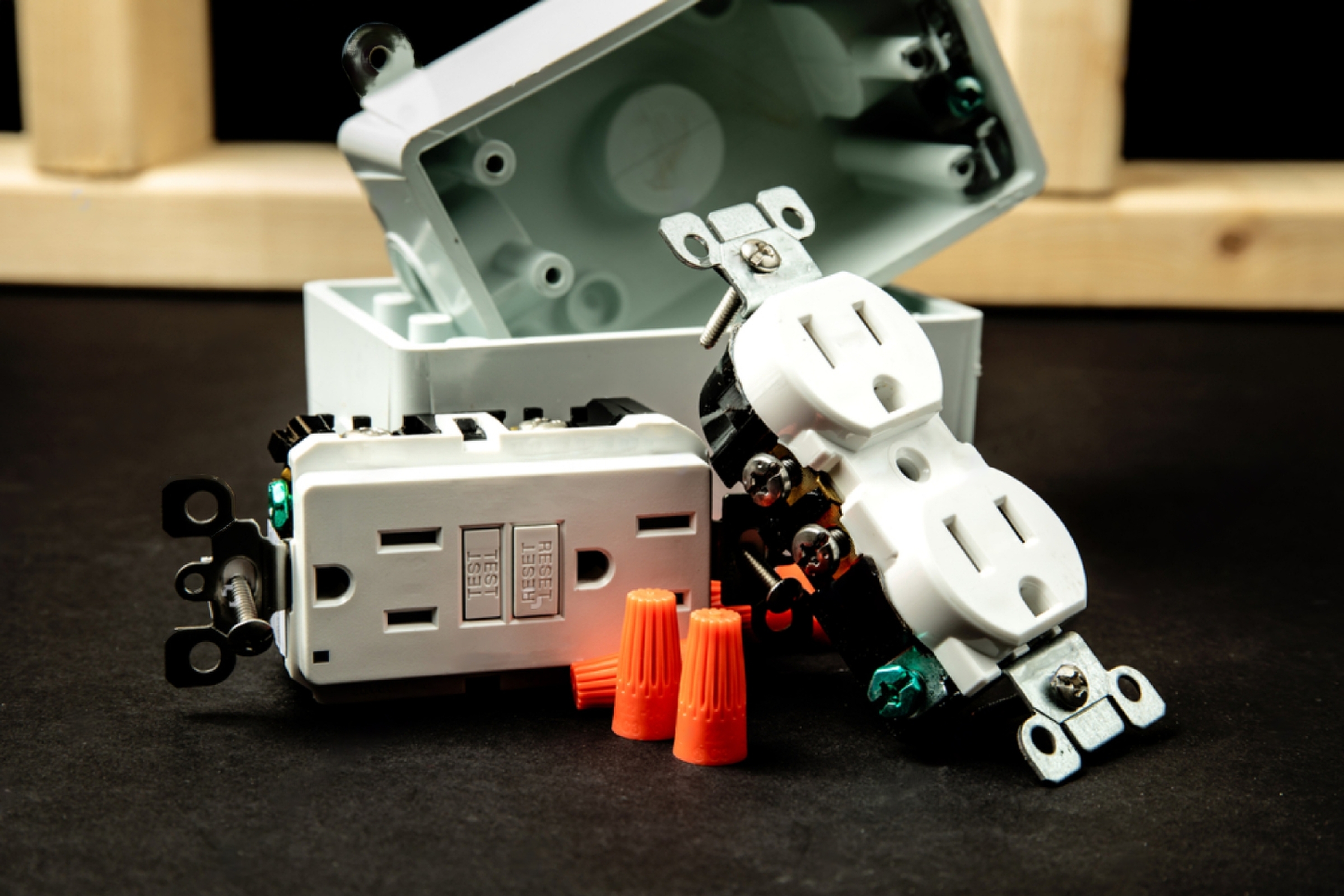

GFCI Outlet Wiring Guide


GFCI Outlet Wiring Guide

Share —

Ground Fault Circuit Interrupter (GFCI) outlets are important safety devices that can help prevent electrical shock and fire hazards. They are commonly used in areas where electrical devices may come into contact with water, such as bathrooms, kitchens, and outdoor areas. Proper GFCI outlet wiring is essential to ensure their effectiveness and safety.

What is a GFCI Outlet?

A GFCI outlet is designed to monitor the flow of electricity through the circuit and can quickly shut off power if there is any imbalance. An imbalance in the current flow can indicate that some of the electricity is flowing through an unintended path, such as a person or water, and may cause electrical shock or even electrocution.

A GFCI outlet works by comparing the incoming and outgoing electrical currents. If the incoming and outgoing currents do not match within a certain range, typically 5 milliamperes (mA), the GFCI outlet trips, shutting off power to the circuit. This quick response can prevent serious injuries or even fatalities.

Why is GFCI Outlet Wiring Important?

GFCI outlet wiring is crucial to ensure that the outlet works correctly and protects against electrical hazards. Improper GFCI outlet wiring can lead to electrical shocks, fires, and even electrocution.

Some of the most common mistakes in GFCI outlet wiring include:

  • Incorrect wiring of the line/load connections
  • Faulty installation of the GFCI outlet
  • Missing or improper grounding
  • Incorrect installation of covers and boxes

Each of these mistakes can prevent the GFCI outlet from working correctly and can create significant hazards for anyone who comes into contact with the electrical circuit. Therefore, it's crucial to ensure that GFCI outlet wiring is done by a qualified electrician.

GFCI Outlet Wiring Requirements

The National Electrical Code (NEC) requires GFCI outlets in several locations, including:

  • Bathrooms
  • Kitchens
  • Outdoor areas
  • Near pools or hot tubs
  • In garages and unfinished basements

The NEC also requires GFCI outlets to have specific wiring requirements, including:

  • Line and load wires must be correctly connected
  • Ground wires must be correctly connected
  • Outlet must be installed with a proper enclosure
  • Outlet must be rated for the correct voltage and amperage
  • Outlet must be tested regularly to ensure proper function

It's essential to follow these requirements to ensure that the GFCI outlet works correctly and provides the necessary protection against electrical hazards.

How to Wire a GFCI Outlet

Wiring a GFCI outlet can be a complicated process, and it's essential to have the necessary knowledge and experience to do it correctly. However, here is a basic overview of the steps involved:

Step 1: Turn off the Power

Before starting any electrical work, make sure to turn off the power to the circuit at the breaker box. Test the circuit with a voltage tester to ensure that no electricity is flowing through the circuit before proceeding with the wiring process.

Step 2: Remove the Old Outlet

If you are replacing an existing outlet with a GFCI outlet, remove the old outlet from the electrical box. Make sure to note the position of the wires on the old outlet to ensure that you connect them correctly to the new outlet.

Step 3: Connect the Wires to the GFCI Outlet

Connect the wires to the new GFCI outlet following the manufacturer's instructions. Typically, GFCI outlets will have a line and a load side. The line side is where the power enters the outlet, while the load side powers additional outlets downstream. Make sure to connect the wires correctly to avoid any electrical hazards.

Step 4: Install the GFCI Outlet

Once the wires are connected, install the GFCI outlet in the electrical box. Make sure to use the correct enclosure and screws to secure the outlet in place.

Step 5: Test the GFCI Outlet

After installing the GFCI outlet, test it to ensure that it's working correctly. Press the test button on the outlet, which should cause the outlet to shut off power. Then, press the reset button to restore power. If the outlet does not trip or reset correctly, consult a qualified electrician to diagnose and fix the issue.

When to Call a Professional Electrician

While GFCI outlet wiring may seem like a simple process, it's essential to have the necessary knowledge and experience to do it correctly. If you are not confident in your electrical skills or have any doubts about the wiring process, it's best to call a professional electrician.

A professional electrician will have the necessary knowledge, skills, and equipment to ensure that the GFCI outlet wiring is done correctly and safely. They will also be able to diagnose any issues with the electrical circuit and provide appropriate solutions to fix them.

Choose Sagan Electric for Your GFCI Outlet Wiring Needs in Sacramento, CA

At Sagan Electric, we understand the importance of GFCI outlet wiring and the potential hazards that can result from improper installation. That's why we provide high-quality electrical services, including GFCI outlet installation and wiring, to ensure that your electrical system is safe and reliable.

Our team of licensed and experienced electricians has the necessary knowledge and skills to handle any electrical project, big or small. We use state-of-the-art equipment and techniques to ensure that your electrical system meets all safety requirements and functions correctly.

If you need GFCI outlet wiring services in Sacramento, CA, don't hesitate to contact Sagan Electric. We offer competitive pricing, exceptional customer service, and high-quality workmanship to ensure that you are satisfied with our services.


GFCI outlets are crucial safety devices that can prevent electrical shocks and fires. Proper GFCI outlet wiring is essential to ensure that these devices work correctly and provide the necessary protection against electrical hazards.

If you need GFCI outlet wiring services in Sacramento, CA, contact Sagan Electric. Our team of licensed and experienced electricians will ensure that your GFCI outlets are installed correctly and safely. Contact us today to schedule a consultation and learn more about our services.
